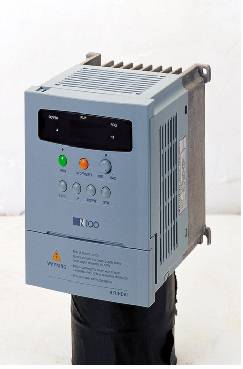

Hyundai N100

N100

Features

High Starting Torque - Powerful Operation

High starting torque of 150% at 0.5Hz
Stable operation within the frequency range

Open Network Communication to Upper Controller

Built-in RS-485 communication interface using modus protocol
The optional built-in communication interface(Profibus, DeviceNet)
Safe Operation
Minimize interference in other equipment through low noise design
Reinforced protective functions with application of high efficient power device
Compact Size and Easy Installation
User-friendly protrusion operator
Direct frequency operation through the volume on the standard digital operator
Space efficiency by making the height of all models 130mm

Versatile Functions

Various monitoring and convenient cord grouping
Various functions (auto-tuning, control of 2nd motor)
PID control function, restart and operation during sudden power failure
Up to 16 set speeds, speed can be changed during operation

High Torque Multi-motor Operation

Powerful operation is possible for two motors using sensorless vector control

Conformity to Global Standards

CE marked for Europe

Specifications

200V Class

Item(N100)				004 SF	007 SF	015 SF	004 LF	007 LF	015 LF	022 LF	037 LF
Output	Applicable Motor Capacity(kW)			0.4	0.75	1.5	0.4	0.75	1.5	2.2	3.7
	Rated Output Current (A)			3	5	7	3	5	7	11	17
	Rated Output Capacity (kVA)			1.1	1.9	3	1.1	1.9	3	4.2	6.1
	Rated Output Voltage (V)			3-phase, 200~230V(±10%)
	Maximum Output Frequency (Hz)			400Hz
Protective Structure				IP20
Cooling Method				Self cooling		Forced cooling	Self cooling		Forced cooling
Control Characteristic	Control System			Space vector PWM control
	Torque Control			V/F control, sensorless vector control
	Output Frequency Range			0.01~400Hz
	Frequency Setting Resolution		Analog	Max. setting frequency/500 (DC 5V input), Max. setting frequency/1000 (DC 10V,4~20mA input)
			Digital	0.01Hz (100Hz less), 0.1Hz (100Hz or more)
	Frequency Precision		Analog	Within 0.1% of output frequency
			Digital	Within 0.01% of maximum output frequency
	Voltage/Frequency Characteristic			Any base frequency setting possible between 0 Hz and 400 Hz, constant torque or reduced torque pattern selection possible
	Overload Rating			150% of rated current for 60 sec.
	Starting Torque			More than 200% (at 0.5Hz)
	Torque Boost			Manual torque boost can be set between 0~50%
	Acceleration/Deceleration Time Setting			0.1~3000 sec. setting possible
	Acceleration/Deceleration Pattern			Linear, S-curve, U-curve selection possible
	Braking Torque		Regenerative	150%(5 sec.)
			DC Braking	Operating frequency(0~120Hz), operating time(0~10 sec.), operating voltage(0~30%) variable External DC braking setting possible
	Current stall Prevention Operation Level			Operation current level setting possible(0~200% variable), enable/disable selection
	Voltage Stall Prevention Operation Level			Operation level constant, enable/disable selection
	Input Signals	Frequency Setting	Analog	0 to 5V DC, 0 to 10V DC, 4 to 20mA, External variable resistor(1~2㏀, 1W), main unit volume resistor input from control panel
			Digital	Control panel
		Starting Signal		Individual selection of forward or reverse run
		Abnormality Reset		Used to reset protective state provided when protective function is activated
		Multispeed Selection		Up to 16 set speeds (each speed can be set between 0Hz and 400Hz), speed can be changed during operation
		2nd Function Selection		Acceleration/deceleration time, base frequency, maximum frequency, multistage frequency, torque boost, electronic thermal, control method, motor parameter
		Output Stop		Instant cutoff of inverter output (frequency/voltage)
		Current Input Selection		Input selection of frequency setting current signal
		Self-protection Function at Starting		Self-protection selection of start signal
		External Trip Contact Input		Contact input for when stopping the inverter with external terminal
		External Thermal Input		Thermal contact input for when stopping inverter with externally mounted thermal relay
		Operation Mode Selection		Control panel or external operation transition selection possible
		Voltage/Frequency Characteristic		V/F control or sensorless vector control method selection possible
	Operation Functions			Multispeed operation, operation mode selection, DC braking, upper/lower frequency setting, frequency jump operation, PID control, AVR, 2-stage accel./decel., instantaneous power failure restart operation, electronic thermal, software lock, carrier frequency adjustment, auto tuning function, forward/reverse run prevention, RS485 link operation
	Output Signals	Operation Status		Inverter running, frequency reached, frequency detection, overload warning fault
		For Meter		Output frequency, output current, output voltage
Display Function	Displayed on Control Panel		Operation Status	Output frequency, output current, output voltage, operation direction, PID feedback, terminal input, terminal output
			Error Details	Fault list, fault history
Protective and Warning Functions				Overcurrent cutoff, regenerative overvoltage cutoff, undervoltage, output short circuit, temperature abnormality, overload cutoff (electronic thermal), ground fault protection
Environment	Ambient Temperature /Storage Temperature			-10℃~50℃ (no freezing) / -20℃~60℃
	Ambient Humidity / Installation Area			90%RH or less(no condensing) / Indoors (no corrosive gases, no flammable gases, no oil mist and no dust)
	Altitude and Vibration			Maximum 1000m or less above sea level, 5.9㎨ or less
Operator				Standard operator built-in control board, optional remote operator
Misc.	International Directive Compliance			UL/CE directive compliance (to be scheduled)

400V Class

Item(N100)				004HF	007HF	015HF	022HF	037HF
Output	Applicable Motor Capacity (kW)			0.4	0.75	1.5	2.2	3.7
	Rated Output Capacity (kVA)			1.8	3.4	4.8	7.2	9.2
	Rated Output Current (A)			1.1	1.9	3	4.2	6.1
	Rated Output Voltage (V)			3-phase, 380~460V(±10%)
	Maximum Output Frequency (Hz)			400Hz
Protective Structure				IP20
Cooling Method				Self cooling	Forced cooling
Control Characteristic	Control System			Space vector PWM control
	Torque Control			V/F control, sensorless vector control
	Output Frequency Range			0.01~400Hz
	Frequency Setting Resolution		Analog	Max. setting frequency/500 (DC 5V input), Max. setting frequency/1000 (DC 10V,4~20mA input)
			Digital	0.01Hz (100Hz less), 0.1Hz (100Hz or more)
	Frequency Precision		Analog	Within 0.1% of output frequency
			Digital	Within 0.01% of maximum output frequency
	Voltage/Frequency Characteristic			Any base frequency setting possible between 0 Hz and 400 Hz, constant torque or reduced torque pattern selection possible
	Overload Rating			150% or rated current for 60 sec.
	Starting Torque			More than 200% (at 0.5Hz)
	Torque Boost			Manual torque boost can be set between 0~50%
	Acceleration/Deceleration Time Setting			0.1~3000 sec. Setting possible
	Accleration/Deceleration Pattern			Linear, S-curve, U-curve selection possible
	Braking Torque		Regenerative	150% (5 sec.)
			DC Braking	Operating frequency(0~120Hz), Operating time(0~10 sec.), operating voltage(0~30%) variable
	Current Stall Prevention Operation Level			Operation current level setting possible(0~200% variable), enable/disable selection
	Voltage Stall Prevention Operation Level			Operation level constant, enable/disable selection
	Input Signal	Frequency Setting	Analog	0 to 5VDC, 0 to 10VDC, 4 to 20mA, External variable resistor(1~2㏀, 1W), main unit volume resistor input from control panel
			Digital	Control panel
		Starting Signal		Individual selection of forward or reverse run
		Abnormality Reset		Used to reset protective state provided when protective function is activated
		Multispeed Selection		Up to 16 set speeds (each speed can be set between 0Hz and 400Hz), speed can be changed during operation
		2nd Function Selection		Acceleration/deceleration time, base frequency, maximum frequency, multistage frequency, torque boost, electronic thermal, control method, motor parameter
		Output Stop		Instant cutoff of inverter output (frequency/voltage)
		Current Input Selection		Input selection of frequency setting current signal
		Self-protection Functional at Starting		Self-protection selection of start signal
		External Trip Contact Input		Contact input for when stopping the inverter with external terminal
		Eternal Thermal Input		Thermal contact input for when stopping inverter with externally mounted thermal relay
		Operation Mode Selection		Control panel or external operation transition selection possible
		Voltage/Frequency Characteristic		V/F control or sensorless vector control method selection possible
	Operation Functions			Multispeed operation, operation mode selection, DC braking, upper/lower frequency setting, frequency jump operation, PID control AVR, 2-stage accel./decel., instantaneous power failure restart operation, electronic thermal, software lock, carrier frequency adjustment, auto tuning function, forward/reverse run prevention, RS485 link operation
	Output Signals		Operation Status	Inverter running, frequency reached, frequency detection, overload warning fault
			For Meter	Output frequency, output current, output voltage
Display Function	Displayed on Control Panel		Operation Status	Output frequency, output current, output voltage, operation direction, PID feedback, terminal input, terminal output, transition frequency monitor, power consumption, operating time accumulation
			Error Details	Fault list, fault history
Protective and Warning Functions				Overcurrent cutoff, regenerative overvoltage cutoff, undervoltage, output short circuit, temperature abnormality, overload cutoff (electronic thermal), ground fault protection External trip, communication error, USP error, EEPROM error
Environment	Ambient Temperature / Storage Temperature			-10℃~50℃ (no freezing) / -20℃~60℃
	Ambient Humidity / Installation Area			90%RH or less(no condensing) / Indoors (no corrosive gases, no flammable gases, no oil mist and no dust)
	Altitude and Vibration			Maximum 1000m or less above sea level, 5.9㎨ or less
Operator				Standard operator built-in control board, optional remote operator
Misc.	International Directive Compliance			UL/CE directive compliance (to be scheduled)
